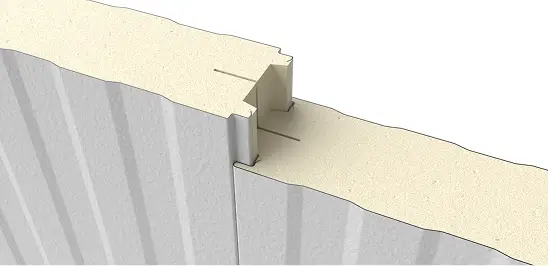

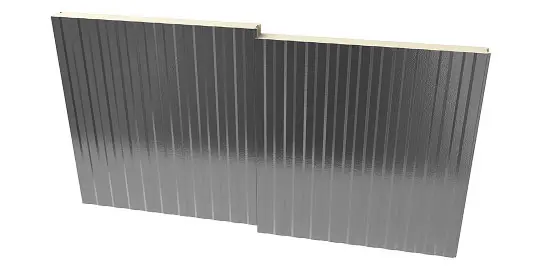

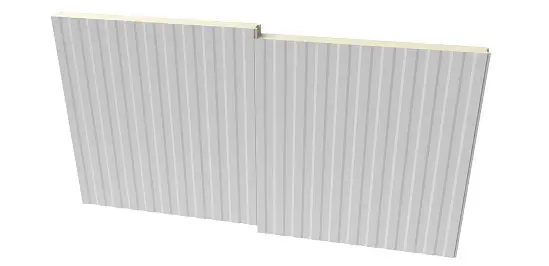

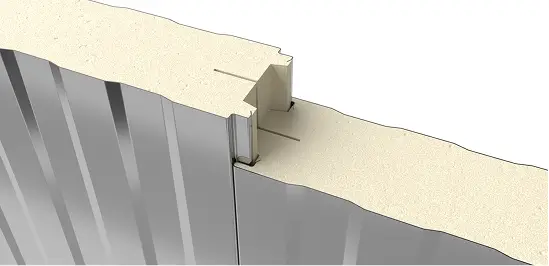

PermaTherm Cold Storage panels with a Heavy Mesa finish provide a rugged, deeply grooved surface designed for durability in the most demanding environments. Built with superior R-values, advanced PermaShield joint technology, and factory precision, these panels deliver airtight construction, dependable temperature control, and reduced operational costs. The heavy mesa profile enhances impact resistance while maintaining the clean, professional look required in cold storage and food processing applications.
At PermaTherm, we know every cold storage project carries unique challenges. That’s why we bring more than panels — we bring partnership. Our team supports you at every stage, offering solutions that improve efficiency, safeguard compliance, and extend the life of your investment.
With PermaTherm, you gain a partner committed to helping your cold storage facility perform at its best.
PermaTherm’s PermaCore product line provides the maximum R-value per inch. Utilizing Poly-Iso Technology (Foamed in Place), PermaCore panels meet the highest standards. With PermaCore, we currently provide the following panel-joint options:
*Only PermaCore delivers factory direct notched freezer panels. The ultimate way to prevent thermal bridging and save you countless hours of field cutting!
PermaCore panels can be used across any application from food processing, to growing environments, clean rooms, and cold storage. PermaTherm’s PermaCore panel is the standard for insulated wall panels.

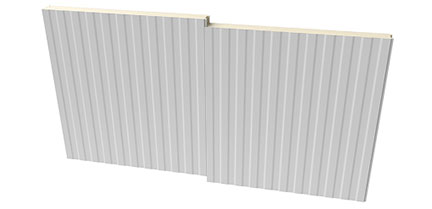

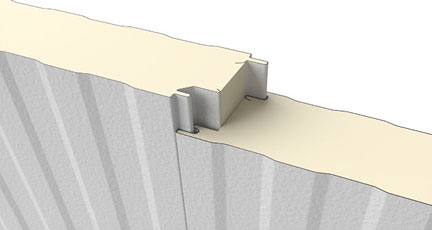

PermaCore PermaCore PCS45 features PermaTherm’s Unrivaled Z-LOCK joint and is the preferred choice for coolers and freezers. Only PermaCORE offers notched freezer panels.
PermaShield: The ultimate way to prevent thermal bridging and save you countless hours of field cutting!
| Product: PermaCore-PCS45 | |
|---|---|
| Panel Use: | Walls, Partition Walls, Ceilings, Coolers, Freezers |
| Profiles: | Light Mesa, Heavy Mesa, Shadowline, No Profile |
| Coverage Width: | 45.5” |
| Available Thickness: | 4” 6” 8” |
| Length: | 8’-0” TO 50’-0” |
| Metal Gauge: | 26, 24, 22 |
| Metal Type: | Galvanized, Stainless Steel or Galvalume |
| Texture: | Embossed, Heavy Embossed, or Smooth |
| Paint Type: | Siliconized Polyester, Fluropon PVDF |
| Core: | Polyisocyanurate (Foamed in Place) Insulation |
| R-Value: | R-8.2 Per Inch of Thickness |
All PermaTherm products are warranted to be free from defects in materials and workmanship for a period of two years from the date of shipment.
A certain amount of “waviness,” or “oil canning,” is inherent in any product made from sheet metal. Installation of large areas of metal panels, or installation of panels to misaligned structures, will cause unnatural stresses, increasing the likelihood of oil canning.
A stucco-like embossed texture in a pre-coated material will reduce the visual effect of oil canning. Oil canning does not affect the structural or thermal integrity of the panel. Minor waviness of the panel does not indicate a defective panel, and is not cause for product refusal.
Minor blisters can sometimes occur when the panel’s exterior face is exposed to the sun. This is caused by the thermal expansion of a blowing agent, which is trapped under the panel face. This is a common phenomenon and is easily repaired, and is not cause for product refusal.
Finished panels free of surface imperfections (dents, mars, scratches, etc.) visible with panel in position of intended use and view under good light from intended installed distance or 8 ft., whichever is greater.
Permacore: Insulated metal wall and ceiling panels
Profiles: Light Mesa, Standard Mesa, Classic Shadow Line, Sleek
Width: 43” & 45.5” Max
Gauge: 26-gauge min. (facer and liner)
Texture Finish: Embossed or Smooth
| Panel Thickness (In.) | 2″ | 2.5″ | 3″ | 4″ | 5″ | 6″ | 8″ |
|---|---|---|---|---|---|---|---|
| R-Value at 35⁰ | 16.26 | 20.33 | 24.40 | 32.52 | 40.65 | 48.78 | 65.04 |
| R-Value at 75⁰ | 15.08 | 18.85 | 22.62 | 30.16 | 37.70 | 45.24 | 60.32 |
R-Values ascertained via ASTM C518 testing.
(Approx 1/16th Depth)
(Approx 1/8th Depth)

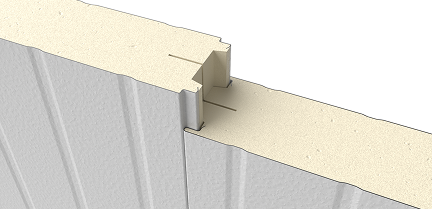

(Classic Shadow Line)
The perfect compliment to the perfect panel, powered by PRISM. Leveraging 35+ years of expertise, PRISM automatically calculates the details, trim and accessories necessary for your project, down to the last screw.
The PermaTherm Guaranteed Take Off (GTO) means we get it right the first time and cover any inaccuracies. We do not outsource, we design and produce every trim ourselves, ensuring a perfect fit and consistent quality for every project. From flat batten to base channel to inside angle, you can source your trim and accessories directly from PermaTherm. We prioritize by shipping trim before we ship panels, so you can install on your schedule.
Click on the button below to explore how PermaTherm’s >150 trim and accessory products are incorporated into our details.
EXPLORE THE PCS DETAIL DRAWINGS
