PermaCore PHF 43 Heavy Mesa

PHF Heavy Mesa Panel Images

Customize Your Look. Maintain the Performance.

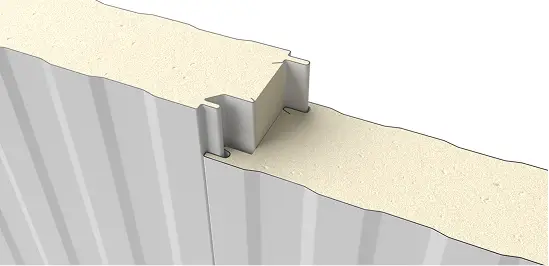

Hidden Fastener Heavy Mesa Smooth Painted Polar Close Up

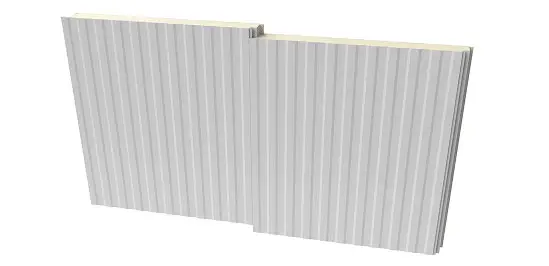

Hidden Fastener Heavy Mesa Smooth Painted Polar

Hidden Fastener Heavy Mesa Smooth Stainless Close Up

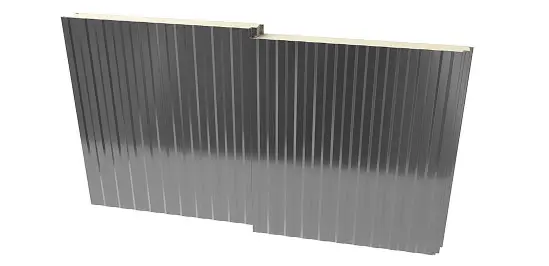

Hidden Fastener Heavy Mesa Smooth Stainless

Hidden Fastener Heavy Mesa Stucco Embossed Painted Close Up

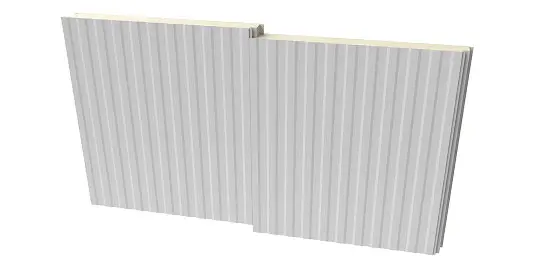

Hidden Fastener Heavy Mesa Stucco Embossed Painted

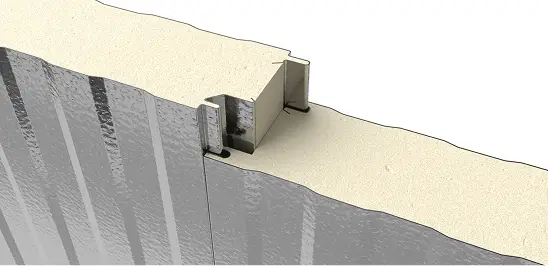

Hidden Fastener Heavy Mesa Stucco Embossed Stainless Close Up

Hidden Fastener Heavy Mesa Stucco Embossed Stainless

PermaCore PHF43 Data Sheet

PermaTherm’s PermaCore product line provides the maximum R-value per inch. Utilizing Poly-Iso Technology (Foamed in Place), PermaCore panels meet the highest standards. With PermaCore, we currently provide the following panel-joint options:

• PermaCore PHF43 Data Sheet – The hidden fastener joint for a variety of uses including exterior walls.
• The cold storage joint which virtually eliminates air entry/loss and thermal bridging.

*Only PermaCore delivers factory direct notched freezer panels. The ultimate way to prevent thermal bridging and save you countless hours of field cutting!

PermaCore panels can be used across any application from food processing, to growing environments, clean rooms, and cold storage. PermaTherm’s PermaCore panel is the standard for insulated wall panels.

PermaCore PHF43 | Mesa | Stucco

PermaCore PCS45 | Classic Shadow Line | Stucco

Product: PermaCore PHF43 Data Sheet

PermaCore PHF43 features the classic Hidden Fastener joint and is suitable for various applications including building exteriors, partition/divider walls, ceilings, and box-in-a-box applications.

*For 2” Max is 40’ and 2.5” Max is 45’

PermaCore PHF43 | Mesa | Stucco Embossed Finish

PermaCore PHF43 | Light Mesa | Smooth Finish

Warranty

DOWNLOAD PDF

PermaTherm, Inc.

Limited Product Warranty

1. COVERAGE AND WARRANTY PERIOD

PermaTherm, Inc. (“PermaTherm”) warrants to the original purchaser (“Customer”) that its insulated metal panel products (the “Products”) will be free from defects in materials and manufacturing workmanship, and will maintain structural and thermal integrity, under normal use and service for two (2) years from the date of shipment (the “Warranty Period”).

This warranty applies only to Products that have been properly stored, handled, installed, and maintained in strict accordance with PermaTherm’s published guidelines and accepted industry standards.

2. EXCLUSIVE REMEDY

If a Product fails to conform to this warranty during the Warranty Period, PermaTherm’s sole obligation, and Customer’s exclusive remedy, shall be, at PermaTherm’s option:

• repair of the affected Product;
• delivery of a replacement Product; or
• refund of the original purchase price paid for the affected Product.

Any repaired or replacement Product is warranted only for the unexpired portion of the original Warranty Period. PermaTherm’s total aggregate liability shall not exceed the original purchase price paid for the defective Product.

3. EXCLUSIONS FROM COVERAGE

This warranty does not cover damage, failure, or conditions resulting from:

• improper handling, storage, installation, erection, modification, cutting, or finishing;
• structural movement, foundation or framing deficiencies, or building design;
• contact with dissimilar or corrosive materials, standing or ponding water, or improper drainage;
• impact, abrasion, abuse, misuse, neglect, lack of maintenance, or unauthorized repair;
• alterations after shipment, including field painting, coatings, penetrations, or attachments not made in accordance with PermaTherm’s written instructions;
• acts of God or force majeure events, including wind, hail, tornado, hurricane, flood, fire, earthquake, or other extraordinary weather or environmental conditions; or
• installer, contractor, or third-party workmanship or design.

No warranty is provided for accessories, fasteners, sealants, coatings, or components not supplied by PermaTherm. Such items are subject solely to the warranties, if any, of their respective manufacturers.

4. OIL CANNING AND COSMETIC CONDITIONS

Oil canning, waviness, minor distortion, and other visual undulations are inherent characteristics of light-gauge metal panels and are not defects. These conditions may result from panel size, color, finish type, thermal movement, structural alignment, fastener placement, or installation practices, and do not impair structural or thermal performance.

Minor cosmetic conditions, including surface irregularities, scratches, or blemishes that do not affect structural or thermal performance, are excluded from this warranty.

5. MINOR SURFACE BLISTERING

Minor surface blistering, pinholing, or irregularities caused by thermal expansion or contraction of entrapped gases or blowing agents are normal characteristics of foam-core panel manufacture. These conditions are cosmetic only and are not defects or grounds for rejection or warranty claim.

6. VISUAL ACCEPTANCE STANDARD

Products shall be evaluated for visual acceptability under normal lighting conditions from a distance of not less than eight (8) feet, or the intended installed viewing distance, whichever is greater. Minor variations in color, gloss, texture, or finish consistency that are normal to coil-coated metals and that do not materially affect structural or thermal performance are not defects.

7. FREIGHT, RISK OF LOSS, AND DELIVERY INSPECTION

When freight is arranged by PermaTherm, PermaTherm bears responsibility for transit damage claims in accordance with the applicable shipping terms stated in the sales documentation.

When freight is arranged by Customer or its designated carrier, title and risk of loss pass to Customer upon loading at PermaTherm’s shipping point. Customer is solely responsible for all transit-related claims.

Customer must inspect Products upon delivery and note any visible shipping damage or shortages on the carrier’s delivery receipt at the time of delivery. Failure to do so may impair Customer’s ability to recover against the carrier.

8. CLAIMS PROCEDURE

To submit a warranty claim, Customer must:

• provide written notice to PermaTherm describing the alleged defect in reasonable detail within thirty (30) days after discovery, and in any event within the Warranty Period; and
• provide PermaTherm reasonable access to inspect the Products in place before any repair, removal, alteration, or replacement.

No claim will be considered if Products have been altered, removed, or repaired prior to PermaTherm’s inspection without prior written consent from PermaTherm.

Submit warranty claims in writing to: warranty@permatherm.com | 269 Industrial Park Rd. Monticello, GA 31064

9. LIMITATION OF LIABILITY

TO THE FULLEST EXTENT PERMITTED BY APPLICABLE LAW, PERMATHERM SHALL NOT BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES, INCLUDING WITHOUT LIMITATION: LABOR OR EQUIPMENT COSTS; COSTS OF REMOVAL, REINSTALLATION, OR ACCESS; PROJECT DELAYS; LOSS OF USE; LOSS OF PROFITS, REVENUE, OR BUSINESS; OR DAMAGE TO OR LOSS OF ANY BUILDING, CONTENTS, OR OTHER PROPERTY, WHETHER ARISING IN CONTRACT, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY, OR OTHERWISE, EVEN IF PERMATHERM HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

10. DISCLAIMER OF OTHER WARRANTIES

This Limited Product Warranty is the sole and exclusive warranty provided by PermaTherm with respect to the Products. Except as expressly set forth herein, PermaTherm makes no other warranties, express or implied, and specifically disclaims any implied warranties of merchantability, fitness for a particular purpose, non-infringement, or any warranty arising from course of dealing, usage, or trade practice, to the maximum extent permitted by law.

11. GOVERNING LAW AND GENERAL PROVISIONS

This warranty is governed by and construed in accordance with the laws of the State of Georgia, without regard to conflict-of-laws rules.

No agent, distributor, or contractor has authority to modify or extend this warranty. Any modification must be in a written instrument signed by an authorized officer of PermaTherm.

In the event of a conflict between this warranty and any other statement or document relating to the Products, this Limited Product Warranty controls.

R-Values

PRODUCT: PermaCore

Permacore: Insulated metal wall and ceiling panels

Profiles: Light Mesa, Standard Mesa, Classic Shadow Line, Sleek

Width: 43” & 45.5” Max

Gauge: 26-gauge min. (facer and liner)

Texture Finish: Embossed or Smooth

R-Values

R-Values ascertained via ASTM C518 testing.

Profile Options

Light Mesa

(Approx 1/16th Depth)

Heavy Mesa

(Approx 1/8th Depth)

SHADOW LINE

(Classic Shadow Line)

NO PROFILE

Installation Guides

PermaTherm Poly-Iso Panel Installation Guidelines

For contractors and project teams working with PermaTherm’s insulated metal panels, this comprehensive guide covers everything you need to ensure a successful installation—from material handling and storage to sealant application and detailed connection drawings. Backed by over 30 years of cold storage panel expertise, this document is essential reading before any panels are ordered or installed.

DOWNLOAD PDF

Panel Weights

2.5 lbs Density

Span & Load Tables

PermaTherm’s PHF43 span and load data is provided for common applications utilizing insulated metal panels and is provided in the following tables.

For questions about your application, don’t hesitate to contact Permatherm and the project management team for assistance.

PermaCore PHF43 Panel – 26 Ga Exterior / 26 Ga Interior

Allowable Single Span for Inward or Outward Distributed Load (5 psf)

Notes:

1. Based on Allowable Stress Design (ASD).
2. Allowable spans shown apply to 43″-wide panels with minimum 26 Ga exterior/interior steel facers and PIR foam core in single span.
3. Allowable spans shown are the lowest value of panel bending strength, shear strength, and deflection limit (L/120), derived from transverse load testing per ASTM E72.
4. Safety factors are 2.25 for bending strength and 3.0 for shear strength.
5. Allowable spans address panel failure modes only. Structural capacity of attachment system must be examined separately.
6. * indicates panel span limited to maximum panel length.
7. Loads from thermal bow or stress are not considered here.
8. Information derived from this analysis shall be used only by individuals familiar with composite panel design.

PermaCore PHF43 Panel – 26 Ga Exterior / 26 Ga Interior

Allowable Single Span for Inward or Outward Distributed Load (5 psf)
Panel Strength, Deflection Limit Criteria (L/120), and Temperature Differential

Notes:

1. Based on Allowable Stress Design (ASD).
2. Allowable spans shown apply to 43″-wide panels with minimum 26 Ga exterior/interior steel facers and PIR foam core in single span.
3. Allowable spans shown are the lowest value of panel bending strength, shear strength, and deflection limit (L/120), derived from transverse load testing per ASTM E72.
4. Safety factors are 2.25 for bending strength and 3.0 for shear strength.
5. Allowable spans address panel failure modes only. Structural capacity of attachment system must be examined separately.
6. * indicates panel span limited to maximum panel length.
7. Loads from thermal bow or stress are not considered here.
8. Information derived from this analysis shall be used only by individuals familiar with composite panel design.

PermaCore PHF43 Panel – 26 Ga Exterior / 26 Ga Interior (Ceiling Span)

Allowable Single Span for Inward or Outward Distributed Load (5-35 psf)
Panel Strength & Deflection Limit Criteria (L/240)

Notes:

1. Based on Allowable Stress Design (ASD).
2. Allowable spans shown apply to 43″-wide panels with minimum 26 Ga exterior/interior steel facers and PIR foam core in single span.
3. Allowable spans shown are the lowest value of panel bending strength, shear strength, and deflection limit (L/240), derived from transverse load testing per ASTM E72.
4. Safety factors are 2.25 for bending strength and 3.0 for shear strength.
5. Allowable spans address panel failure modes only. Structural capacity of attachment system must be examined separately.
6. Loads from thermal bow or stress are not considered here.
7. Information derived from this analysis shall be used only by individuals familiar with composite panel design.

Approvals

DOWNLOAD PDF

PermaCore Poly ISO Specification

PermaCore PHF43 & PermaCore PCS45 Panel with PermaShield Technology

SECTION 07435

INSULATED METAL WALL PANELS

Part 1: General

General: Construct panel system to provide for expansion and contraction of component materials without causing buckling, failure of joint seals, undue stress on fasteners, other detrimental effects to the panel system or adjacent building systems, or warping of faces of panel system.

1.1 SECTION INCLUDES

• Insulated Metal Wall and Ceiling Panels and Related Accessories.

1.2 RELATED SECTIONS

• Section 03300 – Concrete: Foundations
• Section 05120 – Structural Steel: Primary structure.
• Section 05500 – Steel Fabrication: Supporting structure.
• Section 07431- Insulated Metal Roof Panels
• Section 07620 – Sheet Metal Flashing and Trim.
• Section 07900 – Joint Sealers

1.3 REFERENCES

• • American Society for Testing and Materials (ASTM) C578: Standard Test Methods for Characteristics of Poly Iso.
  • ASTM D1622 – 08 Standard Test Method for Apparent Density of Rigid Poly Iso Plastics.
  • ASTM C518 – 10 Standard Test Method for Steady State Thermal Transmission Properties by Means of the Heat Flow Meter Apparatus.
  • ASTM D1621 – 10 Standard Test Method for Compressive Properties Of Rigid Cellular Plastics.
  • ASTM C203 – 05a(2012) Standard Test Methods for Breaking Load and Flexural Properties of Block Type Thermal Insulation.
  • ASTM D1623 – 09 Standard Test Method for Tensile and Tensile Adhesion Properties of Rigid Cellular Plastics.
  • ASTM E96 / E96M – 10 Standard Test Methods for Water Vapor Transmission of Materials.
  • ASTM C272 / C272M – 12 Standard Test Method for Water Absorption of Core Materials for Sandwich Constructions.
  • ASTM D696 – 08 Standard Test Method for Coefficient of Linear Thermal Expansion of Plastics.
  • ASTM D2863 – 12 Standard Test Method for Measuring the Minimum Oxygen Concentration to Support Candle like Combustion of Plastics (Oxygen Index).
  • ASTM E84 – 12b Standard Test Method for Surface Burning Characteristics of Building Materials
  • ASTM A653 / A653M – 11 Standard Specification for Steel Sheet, Zinc- Coated (Galvanized) or Zinc-Iron Alloy-Coated (Galvannealed) by the Hot- Dip Process.
  • ASTM A924 / A924M – 10a Standard Specification for General Requirements for Steel Sheet, Metallic-Coated by the Hot-Dip Process.
  • ASTM E18 – 11 Standard Test Methods for Rockwell Hardness of Metallic Materials.
  • ASTM E72 – 10 Standard Test Methods of Conducting Strength Tests of Panels for Building Construction.
  • ASTM E1996 – 12 Standard Specification for Performance of Exterior Windows, Curtain Walls, Doors, and Impact Protective Systems Impacted by Windborne Debris in Hurricanes.
  • ASTM E330 – 02(2010) Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by Uniform Static Air Pressure Difference.
  • Florida Products Approval Number FL28892.1, 3”, 4”,6″& 8” poly Iso Panels. Approved Certification for Structural Insulated Panels for Roof Deck or Floor @ 2.25-pound density.
    Category: Structural Components. Subcategory: Roof Deck.
  • Florida Products Approval Number FL28893.1, 3”, 4”,6 & 8” Poly Iso Wall Panel. Approved Certification for Structural Insulated panels for Wall panels @ 2.25-pound density.

Category: Structural Components. Subcategory: Structural Wall.

• Factory Mutual Research Corporation FM 4471 test leakage and moisture penetration test procedure for class 1 panel roof.
• Metal paint testing requirements:
  • Metal film thickness. ASTM D 5796.
  • Metal Color: ASTM D 1729.
  • Specular Gloss ASTM D 523 at a gloss meter angle of 60⁰.
  • Minimum pencil hardness of Metal per ASTM D 3363 is “F”
  • Solvent Resistance of Metal Passes ASTM D 5402
  • Cross hatch Adhesion passes Per ASTM D 3359
  • Impact resistance per ASTM D 2794
  • Humidity Resistance No blistering, cracking, peeling, loss of gloss or softening of finish per ASTM D 2247
  • Cleveland Condensing no blistering, rusting or loss of adhesion of finish per ASTM D 4585
  • Water immersion Test per ASTM D 870 with no loss of gloss, blistering, cracking, color change or softening
  • Salt Spray resistance Per ASTM B 117 no loss of adhesion and scribe creep no greater than 1/8”
  • Chemical resistance per ASTM D 1308 7.2 spot test
  • Kestermich Test no color change after 10 cycles per ASTM G 87
  • Accelerated weathering per ASTM G 87
  • Exterior weathering ASTM D 2244 at least #8 chalk rating per ASTM D4214
  • Abrasion Resistance per ASTM D 968 Method A “Pass”
  • Flame Spread rating per ASTM E 84 Class A or 1

1.4 Performance Requirements: Design and construct panels to meet requirements as indicated.

• Structural and Wind load Tests:
  • Design panel composition to resist wind load mandated by code, with deflection limit of L/240.
  • No permanent damage to panels or connections when subjected to 1.5 times the design wind pressures for both inward and outward.
• Thermal Performance:
  • Panels shall produce no post manufacturing off gassing which could result in loss of future thermal resistance and must have a Long Term R- Value (LTR).
• Fire:
  • Surface Burning Characteristics: Insulated core shall have been tested in accordance with ASTM E 84 and UL 723, NFPA 255 for surface burning characteristics. The core shall have a maximum flame spread of 25 and a smoke developed rating of less than 450.
  • Surface Burning Characteristics: Exterior panel skin shall have been tested in accordance with ASTM E 84 and UL723, NFPA 255 for surface burning characteristics. The exterior shall have a maximum flame spread of 25 and a smoke developed rating of less than 450.
  • NFPA 286 Corner testing with a passing grade
• Vapor Barrier:
  • Water Spray Leakage test shall show no evidence of penetration through the panels or panel joints when subjected to a preload air pressure of 30 psi and a water spray rate of 5 gallons/ psf/ per hour for 15 minutes, per Factory Mutual Research Corporation FM 4471 test procedures for class 1 roof panels.
  • Static Water Penetration must exhibit no sign of leakage for a period of 7 days with ponded water at a 6 inch continuous water depth for the duration of the test, per Factory Mutual Research corporation FM4471 test procedures for class 1 roof panels.

1.5 SUBMITTALS

• Submit under provisions of Section 01300.
• Product Data: Manufacturer’s data sheets on each product to be used,
  including:
  • Preparation instructions and recommendations.
  • Storage and handling requirements and recommendations.
  • Material type, metal thickness and finish
  • Installation methods
• Shop Drawings: Indicate dimensions, description of materials and finishes, general construction, specific modifications, component connections, anchorage methods, hardware, and installation procedures, including specific requirements indicated.
  • Profile and gauge of both exterior and interior sheet.
  • Metal finish
  • Relationship to other work
  • Fully show details and connections to and locations of supporting steel indicating control points.
• Color samples : For Each finish product specified, one color chart representing manufacturer’s full range of available colors.
• Verification Samples: For each finish product specified, two color submission samples representing actual product color.
• Quality Control Submittals:
  • Statement of qualifications
  • Design data
  • Test reports
• LEED Submittals: Provide documentation of how the requirements of Credit will be met:
  • EA – Energy and Atmosphere:
    • EA Credit 1: Optimize Energy Performance: Demonstrate percentage of performance improvement that meets or surpasses ASHRAE/IESNA Standard 90.1-2004.
    • EA Credit 2: Minimum Energy Performance: Roof panels contribute to higher energy efficiency of a building that must comply with a 10 percent improvement in the performance compared to benchmark rating based on ASHRAE/IESNA Standard 90.1-2007 (with errata but without addenda) in EA Prerequisite 2.
  • MR – Material and Resource:
    • MR Credit 1.1 & 1.2: Building Reuse:
      • Maintain Existing Walls, Floors and Roof.
      • Maintain Interior Non-Structural Elements.
    • MR Credit 3: Materials Reuse
    • MR Credit 4: Recycled Content:
      • Percentage weight of post-consumer and pre- consumer recycled content using materials with recycled content.
      • Recycled content value of product assembly by weight.
      • Indicate total value (cost) of each product used.
    • MR Credit 6: Rapidly Renewable Materials: Foam core in panels using rapidly renewable buildings materials and
      products for 2.5 percent of the total value of all building materials and products used in the project (based on cost.)
  • IEQ – Indoor Environmental Quality:
    • IEQ Credit 4.1: Low-Emitting Materials, Adhesives and Sealants: Product data on adhesives and sealants to comply with standards of South Coast Air Quality Management District Rule #1168.
    • Product data for paint and coatings have no VOC’s.
  • Buy American Act Certification: Submit documentation certifying that products comply with provisions of the Buy American Act 41 U.S.C 10a-10d.
  • Manufacturer’s Certificates: Certify products meet or exceed specified requirements.
  • Paint certificate Ceram-A-Star 1050 U Meets low and steep- sloped Roof requirements for LEED-NC version 2.2 SS Credit 7.2, Heat Island effect: Roof.

1.6 QUALITY ASSURANCE

• Manufacturer’s Qualifications: Company specializing in manufacturing of all required aspects of insulated metal panel production.
  • No less than 10 years’ experience in the actual production of specified products.
  • Third party certification of Quality Control program and materials utilized, in compliance with rigid factory guidelines, which includes quarterly unannounced inspections by independent testing laboratories, capable of providing reports directly to code authority.
  • Successfully completed not less than 100 comparable scale projects using this system.
  • Company specializing in manufacturing factory continuous insulated metal panels with a minimum documented experience of ten years.
  • Company specializing in on site manufacturing rigid foam insulation for the purpose of insulated metal panels with a minimum documented experience of ten years.
• Installer’s Qualifications: Experienced in installation of system similar in complexity for specific requirements.
  • Installer shall be responsible for installation of panel and support framing as specified in this section to comply with the following:
    • Wind load engineering to comply with code requirements.
  • Acceptable to or licensed by manufacturer.
  • Not less than 3 years experience with systems.
  • Successfully completed not less than 5 comparable scale projects using this system.
• Product Requirements:
  • Metal members (prone to rust) and wood or wood by-products (prone to moisture absorption and rot), shall not be permitted within the panel connection system.
  • Insulated panels, related accessories, and construction details shall be in accordance with the following regulatory agency, where required:
    • United States Department of Agriculture (USDA)
    • Canadian Food Inspection Agency (CFIA)
  • Wall and Ceiling panel should meet the standards per (ASTM) C578.
  • Panel manufacturer shall have third party inspection of panel manufacturing process on a quarterly basis.
• Mock-Up: Provide a mock-up for evaluation of surface preparation techniques and application workmanship.
  • Finish areas designated by architect.
  • Do not proceed with remaining work until workmanship, color and sheen are approved by architect.
  • Refinish mock-up area as required to produce acceptable work.

1.7 DELIVERY, STORAGE, AND HANDLING

• Store products in per manufacturer’s recommendation until ready for installation.
• Store products off the ground, with panels sloped for drainage and covered to protect factory finishes from damage.
• Store and dispose of solvent-based materials, and materials used with solvent-based materials, in accordance with requirements of local authorities having jurisdiction.

1.8 PROJECT CONDITIONS

• Maintain environmental conditions (temperature, humidity, and ventilation) within limits recommended by manufacturer for optimum results. Do not install products under environmental conditions outside manufacturer’s absolute limits.

1.9 WARRANTY

• Provide manufacturer’s one year limited warranty that panels are free from defects in materials and workmanship, beginning from the date of shipment of panels, but excluding coil coatings (paint finishes) covered under a separate warranty. Warranty does not include interior painted surface of panels.
• Provide coil coater’s written warranty on paint finish for adhesion to the substrate.
• Provide exterior paint manufacturers written limited 25 year warranty for chalking and color fade of exterior paint finishes only.

Part 2: Products & Materials

2.1 MANUFACTURERS

• Acceptable Manufacturer: Permatherm Inc., which is located at: 269 Industrial Park Road Monticello, GA. 31064 Office (706) 468-7500, Fax (706)-468-7510 Email: info@permatherm.net
• Substitutions: Not permitted.

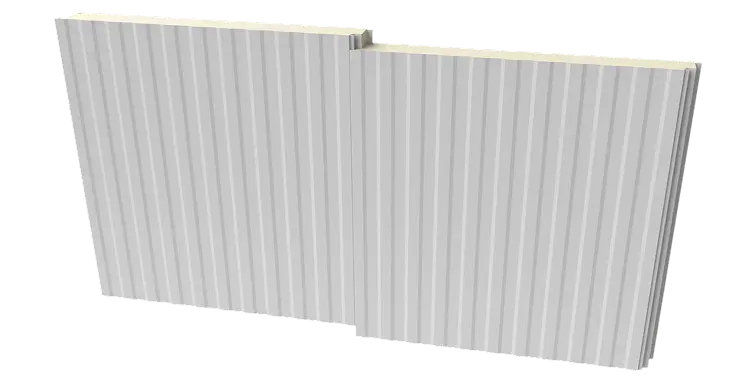

2.2 Insulated Metal Wall Panels

• Panel General Requirements: Roll-formed exterior and interior steel sheet faces laminated to poly Iso foam core. Poly Iso foam core shall not contain CFC’s, HCFC’s or HFC’s. Insulated wall and ceiling panels shall be supplied in widths of 45.5 inches (+/- 1/8”) or 43” (+/-1/8”) Panel lengths shall be factory cut to meet required site dimensions.
  • Panel Thicknesses:
    • 2 inches (50 mm)
    • 2.5 inches (50 mm)
    • 3 inches (75 mm)
    • 4 inches (100 mm)
    • 5 inches (125mm)
    • 6 inches (150 mm)
    • 8 inches (200 mm)

2.3 Materials

• Interior Face
  • Interior wall and ceiling panels shall be clad on all exposed areas with 26 gauge (0.455 mm) pre-painted G90 galvanized steel or AZ-50 Galvalume (USDA accepted).
• Exterior Face
  • Exterior insulated panels shall be clad on the weather-exposed side with 26 gauge (0.455 mm) pre-painted G90 galvanized steel or AZ-50 Galvalume (USDA accepted).
• Lamination and Joint fabrication
  • Metal skins shall be continuous line Poly Iso insulation. Insulated panels shall be manufactured individually laminated, insuring uniform size and composition.
  • Panel edges shall be fabricated with a tongue-in groove type Cold storage panel connection system or Hidden fastener system.
  • Slip joints shall be sealed internally by running continuous beads of FSI-96 butyl caulking (or approved alternate) along the warm inside edge of the female side of the panel joints.
  • Slip joints shall be externally caulked for USDA inspected areas only, or as specified, with white silicone (or approved alternate).
• Foam Core:
  • • Wall panels and ceiling panels shall consist of poly Iso 2.25 lbs insulation.
    • Finished panels shall have an approximate R-Value of 8 per inch at 40⁰ F (4.44⁰ C) Insulation thickness of panels shall be adjusted in accordance with design R-value requirements.
    • Insulation shall not contain CFC’s or HCFC’s, or other expanding

  agents, resulting in zero ODP and zero VOC production.

• Exterior finish: USDA approved Siliconized polyester paint System
• Interior finish: USDA approved Siliconized polyester paint System
• Flashing and Trim: Brake-formed sheet metal in the same thickness and finish to match the panels.
• Fasteners: Clips, anchoring devices, fasteners, and accessories for installation of panel system as recommended by panel manufacturer for the system specified.
• Sealant: Sealant as recommended by panel manufacturer.

Part 3: INSTALLATION AND EXECUTION

3.1 EXAMINATION

• Verification of Conditions: Examine areas and conditions under which work is to be performed and identify conditions detrimental to proper or timely completion.
  • Panel installer to verify that structural steel supports for wall panels are within tolerances in the AISC Code of Standard Practice, Section 7 and supplement modification controlling Section 7.11.3, adjustable items. Limit maximum deviation of steel alignment to plus or minus 3/16 inch (4mm) from the control with a 1/8 inch (3 mm) maximum change in deviation for any member for any 10 feet (3 m) length of panel.
  • Do not proceed until unsatisfactory conditions have been corrected.
• If support system preparation is the responsibility of another installer, notify architect of unsatisfactory preparation before proceeding.

3.2 INSTALLATION

• Install in accordance with manufacturer’s instructions and industry
  standards.
• Fasteners according to manufacturer’s recommendations and verified as suitable by project engineer or installer.
• Field fabrication of corner panel connections shall be butted or mitered, flashed, and finished by installation crew on-site.
• Form panel shape as indicated on Drawings, accurate in size, square, and free from distortion or defects.
• Install flashing and trim true and in proper alignment.
• Install sealants where indicated to clean dry surfaces only without skips or voids, to ensure weather tightness and integrity of the vapor barrier.

3.3 FIELD QUALITY CONTROL

• Installer shall make periodic inspections and issue report to architect regarding compliance with manufacturer’s installation recommendations developed for the project.

3.4 ADJUSTING AND CLEANING

• Repair damage caused during construction.
  • Touch-up mars, scratches, and cut edges to match original finish.
  • If repairs cannot be made to comply with architect’s requirements, remove damage and install new materials.
• Replace damaged panels and other components of work, which cannot be repaired by finish touch-up or similar minor repair.
• Wipe finished surfaces clean of any filings caused by drilling or cutting to prevent rust staining.

PermaTherm Details

The perfect compliment to the perfect panel, powered by PRISM. Leveraging 35+ years of expertise, PRISM automatically calculates the details, trim and accessories necessary for your project, down to the last screw.

The PermaTherm Guaranteed Take Off (GTO) means we get it right the first time and cover any inaccuracies. We do not outsource, we design and produce every trim ourselves, ensuring a perfect fit and consistent quality for every project. From flat batten to base channel to inside angle, you can source your trim and accessories directly from PermaTherm. We prioritize by shipping trim before we ship panels, so you can install on your schedule.

Click on the button below to explore how PermaTherm’s >150 trim and accessory products are incorporated into our details.
